“Rear tire damaged” is the sort of note that starts a conversation and ends an audit. The workshop has to call back: which rear axle, which side, inner or outer, and what did the inspector actually see? A truck tire inspection checklist gives that note somewhere useful to go. It ties a tire to a photograph, a measurement and a person who will decide what happens next.
This is a working guide for fleet managers, workshop teams and TBR buyers. It sits beside the fleet’s own inspection procedure. Imagine opening the record the next morning, after the truck has gone: the position, photo and next owner should still make sense. The rules of the country where the truck operates still decide whether a tire can stay in service.
Give the Finding a Location Before Giving It a Label
Most arguments about a defect report begin with location, not with the defect itself.
The first few fields do more work than they seem to
Put the vehicle number, date, mileage and inspector at the top. Then add the axle and side. A truck with three rear axles shouldn’t be reduced to “left rear”; the axle number removes that ambiguity. If a trailer is part of the inspection, record the trailer number too.
Copy the sidewall size, pattern and tire ID from the tire. If the marking is dirty or unreadable, say so and attach a photograph. That small admission is safer than filling in a size from memory and discovering later that the replacement enquiry was built on the wrong tire.
The LS668 product page describes LS668 as a regional steer and trailer TBR tire. That is useful product context. It still doesn’t replace the fitted tire’s own marking and wheel position in the report. A catalogue name can suggest a match; only the vehicle entry can show where the tire was actually found.

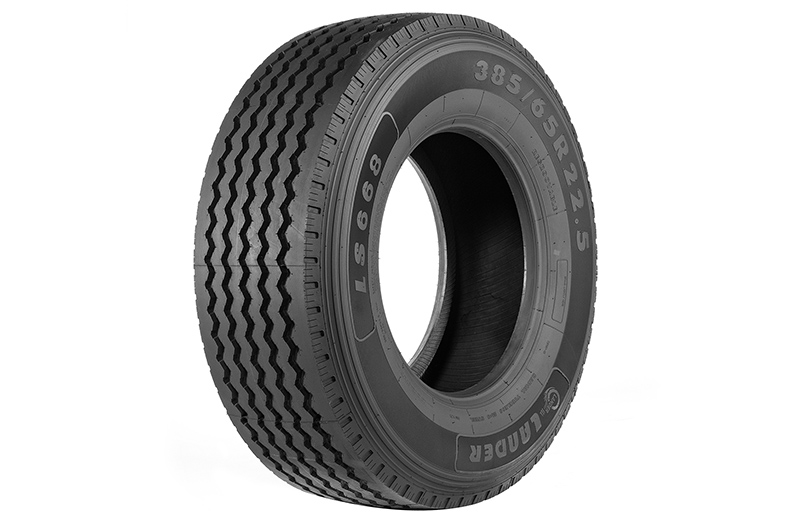

LS668 regional steer and trailer TBR tire. Official product image.
Inner and outer tires should not share one observation
Two tires in a dual assembly can look different. Keep their notes separate even when the work ticket is shared. A line such as “second rear axle, left outer; sidewall cut visible; photograph 04; referred to workshop” gives the next person a place to start.
Let the Evidence Explain the Decision
A good report doesn’t try to make the decision before the evidence has been recorded.
Keep the regulation short and local
For a U.S. example, 49 CFR 393.75 can be cited when a report involves exposed ply or belt material, separation, a flat tire, an audible leak or a cut that exposes the tire structure. That’s a U.S. reference, not a worldwide rule. The operating market and the fleet’s own removal policy still control the result.
On a truck tire inspection checklist, keep the description and photograph beside the finding. Add the measurement point and unit when a reading is taken. Picture a reviewer comparing two tires on the same axle: without that location, even a correct number can be attached to the wrong wheel. Pressure can be recorded with the conditions of measurement and the approved load reference; one universal pressure number shouldn’t be invented for every truck.
Make the Handover Easy for the Workshop
The person reviewing the report may never meet the person who wrote it. That’s why the record has to carry the explanation on its own.
A compact record can answer five practical questions
Which tire was checked?
What was visible, and where?
Was anything measured, and how?
Who owns the next decision?
What will show that the item is closed?
|
Part of the record |
Useful detail |
Question it answers |
|---|---|---|
|
Identity |
Tire ID, size, axle and side |
Which wheel is this? |
|
Evidence |
Finding, location and photo |
What was actually seen? |
|
Reading |
Number, unit and point |
Can the result be checked? |
|
Review |
Owner and action |
Who decides the next step? |
|
Closure |
Ticket and recheck |
Is the issue finished? |
The workshop can add its action below the original observation. A replacement gets a new tire ID beside the old entry. If the tire stays in service, the reason and the next check belong there too. “Done” on its own doesn’t tell anyone what happened. A short sentence such as “rechecked cold, no further leak, monitor at next route check” gives the next person something they can act on.
One trial run is worth doing before the form goes to the whole fleet. Hand it to someone who wasn’t at the inspection. Can they find the tire and name the next action? If not, the field or example needs to be clearer.

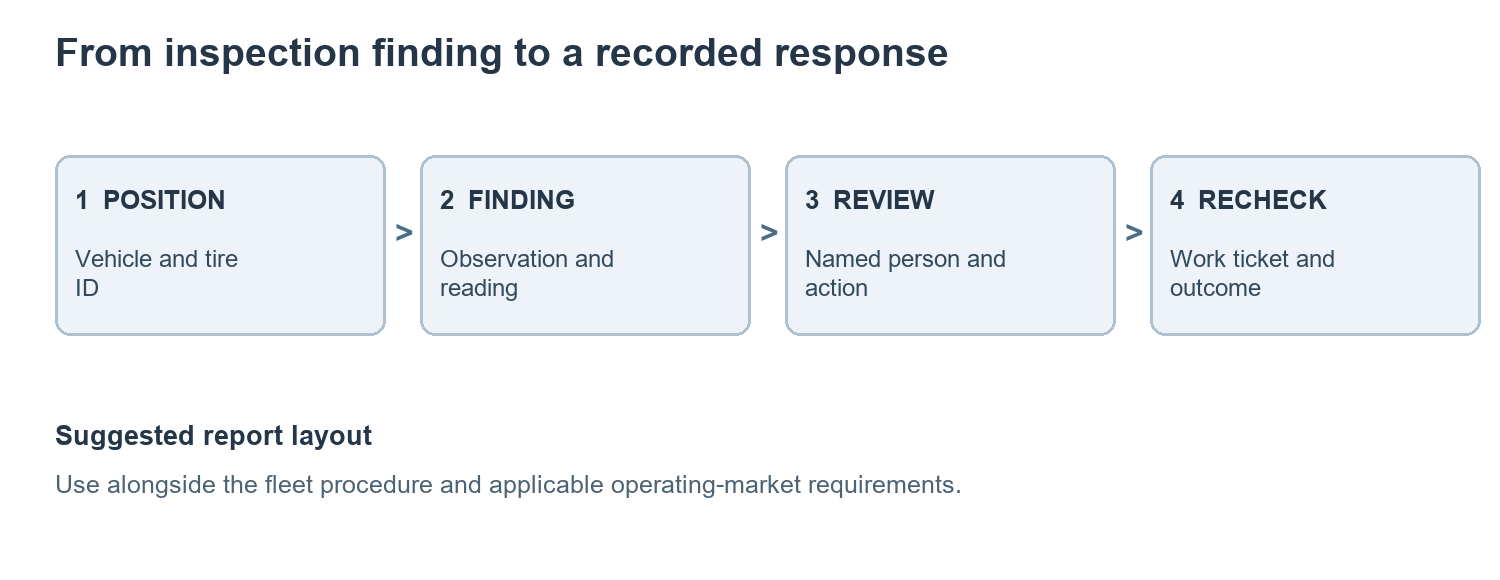

Suggested inspection report workflow. Illustrative reporting aid.
Carry the Same Story Into the Replacement Enquiry
The purchasing team shouldn’t have to reconstruct the inspection from a size alone. A short note about the route can save a long email later.
Route and load are part of the tire request
Start with the size and axle role. Add the route, load information, photographs and readings. That tells the supplier where the tire will work and why the enquiry was opened. It also saves the buyer from forwarding three separate messages just to answer one fitment question.
The LS302PRO product page describes a regional drive-position TBR tire for non-paved roads. If the product is being considered, send the intended size and application with the inspection record. The fleet’s normal service review should confirm the fitment before ordering.

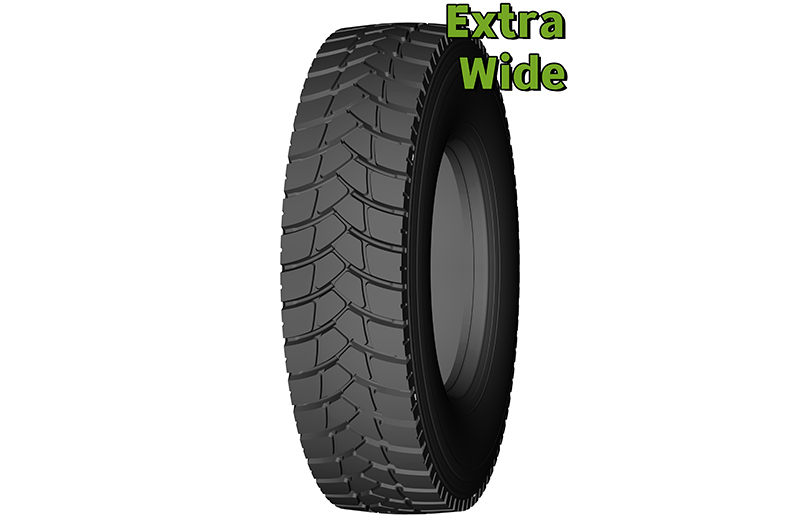

LS302PRO regional drive-position TBR tire. Official product image.
TBR Product Discussions with QINGDAO LANDER-SKY TYRE CO. ,LTD
QINGDAO LANDER-SKY TYRE CO. ,LTD’s company overview describes tire design and production since 2013, including TBR tires. Buyers can review the TBR product range and send the exact size, route, quantity and inspection findings. Keep the confirmed product row and complete specification with the order record.
Conclusion: A Clear Reply Finishes the Report
A truck tire inspection checklist is doing its job when a later reader can connect the tire position, evidence, reviewer, action and recheck. That same chain gives a replacement enquiry its reason and application.
FAQs About a Truck Tire Inspection Checklist
The questions below cover the small decisions that tend to hold up a review or a repeat-order enquiry.
What belongs at the top of the form?
Vehicle number, date, mileage and inspector come first. Add the individual tire position, tire ID and sidewall size.
Which regulation can a U.S. report cite?
49 CFR 393.75 is one U.S. reference for conditions such as exposed ply or belt material, separation, a flat tire, an audible leak or a cut exposing the tire structure. Local requirements still apply.
Why keep inner and outer tires separate?
They can have different findings. Separate notes preserve that difference while allowing one shared work ticket.
What should a measurement include?
Keep the number, unit, measurement point and conditions beside the entry. The applicable fleet or local criterion should also be clear.
Does this replace a complete vehicle inspection?
No. It is a tire reporting aid used alongside the fleet’s complete inspection procedure.
What closes a reported defect?
The reviewer, action, work ticket and recheck should remain linked to the original finding.
What should accompany a repeat-order enquiry?
Send the tire identity, axle position, route, load information and relevant findings so the supplier can confirm the replacement specification.
