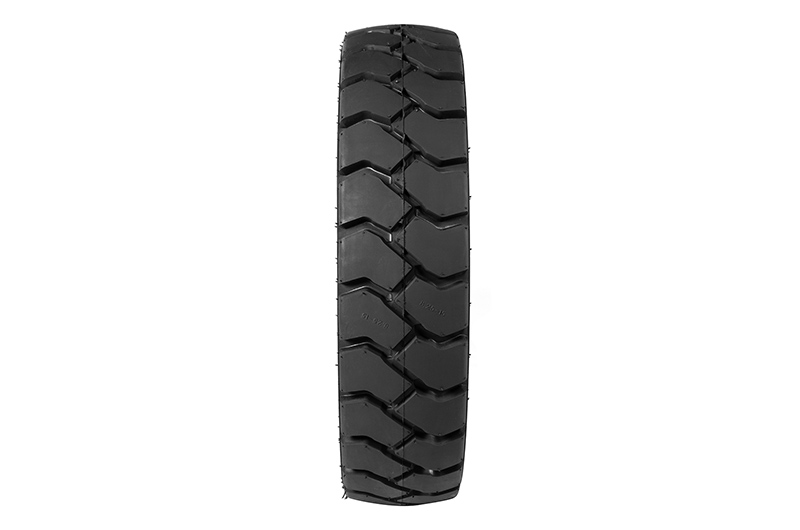

1. Classic pattern is widely used in sereval kinds of tasks; suitable for forklifts, fork trucks, industrial tractors, etc.
2. Block like pattern provides good wear resistance and longer service life.
3. This basic forklift tire pattern has outstanding guidance and control capacity.
4. Excellent loading capacity, wide running area and stability.
5. This kind of forkift tire can be used in large range of conditions such as: hospitales, warehouses, ports and so on.
Size | PR | Overall Diameter(mm) | Section Width(mm) | Rim | Load Capacity (kg) | inflated Pressure (kpa) | Pattern |
5.00-8 | 10 | 470 | 137 | 3.50D | 1295 | 900 | LS658 |
6.00-9 | 10 | 540 | 160 | 4.00E | 1795 | 850 | LS658 |
6.50-10 | 10 | 590 | 175 | 5.00F | 1965 | 775 | LS658 |
7.00-12 | 14 | 683 | 192 | 5.00S | 2670 | 1000 | LS658 |
7.00-15 | 14 | 750 | 200 | 5.50F | 3100 | 945 | LS658 |
8.25-15 | 14 | 847 | 236 | 6.5 | 3830 | 830 | LS658 |
250-15 | 16 | 735 | 250 | 7.5 | 4350 | 850 | LS658 |
27*10-12 | 14 | 690 | 250 | 8.00G | 3620 | 750 | LS658 |
28*9-15 (8.15-15) | 14 | 710 | 220 | 7.00 | 3285 | 800 | LS658 |
300-15 | 20 | 840 | 300 | 8.00 | 6825 | 900 | LS658 |
