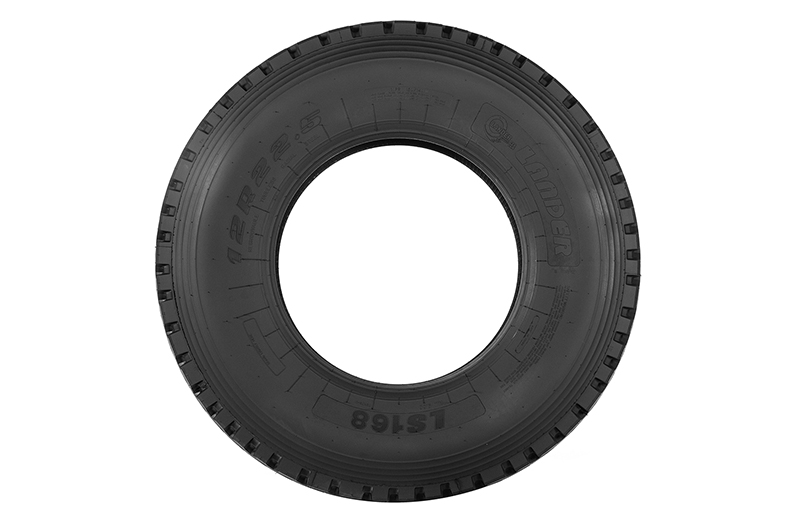

Double compound for tread, high wear-resistance compound for tire crown, low heat and rolling generation compound for inner layer, all prolong tyre life.

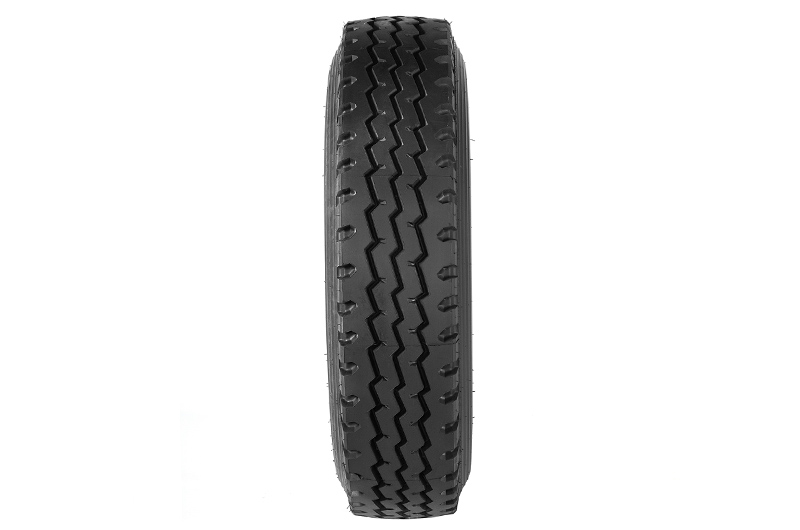

Open shoulder design enhance heat dissipation and traction.
Stratified tread design reduce noise.
Size | PR | LI | SS | Standard Rim | Section Width | Overall Diameter | Depth mm |
Single load Kg |
Dual load Kg |
Inflation pressure kPa |
700R16 | 14 | 118/114 | L | 5.00F | 215 | 775 | 12.5 | 1320 | 1180 | 770 |
7.50R16 | 14 | 122/118 | L | 6.00G | 215 | 805 | 12.5 | 1500 | 1350 | 770 |
8.25R16 | 16 | 128/124 | L | 6.50H | 235 | 855 | 13.5 | 1800 | 1600 | 770 |
9.00R20 | 16 | 144/142 | K | 7.00 | 259 | 1019 | 15.5 | 2800 | 2650 | 900 |
10.00R20 | 18 | 149/146 | K | 7.50 | 278 | 1054 | 16.5 | 3250 | 3000 | 930 |
11.00R20 | 18 | 152/149 | K | 8.00 | 293 | 1085 | 17.0 | 3550 | 3250 | 930 |
12.00R20 | 20 | 156/153 | K | 8.50 | 315 | 1125 | 17.5 | 4000 | 3650 | 900 |
12.00R24 | 20 | 160/157 | K | 8.50 | 315 | 1226 | 15.0 | 4500 | 4125 | 900 |
11R22.5 | 18 | 148/145 | M | 8.25 | 279 | 1054 | 15.0 | 3150 | 2900 | 830 |
12R22.5 | 18 | 152/149 | M | 9.00 | 300 | 1085 | 17.0 | 3550 | 3250 | 930 |
13R22.5 | 18 | 154/151 | L | 9.75 | 320 | 1124 | 17.5 | 3750 | 3450 | 830 |
315/80R22.5 | 20 | 156/150 | M | 9.00 | 312 | 1076 | 16.0 | 4000 | 3350 | 850 |
